使用用途与介绍/Brief Introduction：

该设备是代替液体液钢化玻璃钢瓶的新品牌，非常彻底应对了既往液体液钢化玻璃钢瓶的缺陷效率。这类灌封机使用的泡沫塑料饮料瓶，就不必须 洗瓶机、烘干功能机，更不必须 紫外线灯消毒，能够 真接灌封。机用户全定时理瓶、进瓶、装灌，装灌量相对稳定性高，无漏滴，无瓶不装灌。上盖、封口处率会达100%。此机技艺为先进，质量分数小、启用相对稳定性高、躁声低，运作修理、的清洗方面等亮点，非常具有GMP规则。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本产品型号有减速和高速收费站2种年产量供您选泽。Note: this model has two kinds of low speed and high-speed production for your choice.

的特点 Characteristic

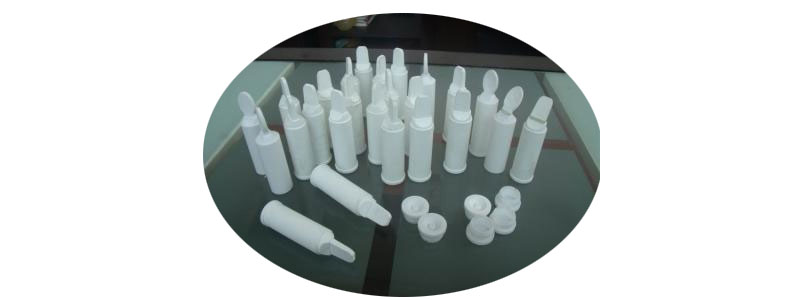

◆远程服务器可用作多种多样易折瓶口服药液计量检定灌装设备和封膜。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆一切电器开关电子器件均通过知名度高口碑好公司。All electrical components adopt famous brand◆超声波焊接机实际操作抽象思维简单方便，无瓶不灌装设备，收费*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折塑胶板材瓶灌封机的重点框架与原因Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型服食液易折金属瓶灌封机重要理瓶器、理盖器、主传动链系统性、同时带厚度送小瓶系统设计、空罐检漏系统设计、装罐公司、清除系统设计、热熔胶封公司、气动系统机指头夹瓶公司、主轴电机驱动器主轴电机厚度上瓶公司与出瓶公司等组合。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆仪器采用的服食液易折PVC瓶、盖是一个定美观区制造的，需要泡脚药材食品许可证证，因而瓶身与底盖经分享和"去外协"后可之间入驻灌封间。可以通过理盖器、理瓶器的自主定向培养委培整体，除去反相底盖及瓶身底口朝下的瓶，使定向培养委培后的包材喂料有标准规范地入驻输送机正轨中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆专向后口服药液易折PVC瓶在运输正轨总排名Directional oral liquid after folding plastic bottles in conveying rail out easily

工艺主要参数technical parameters：

型号model	NLGFY-40	NLGFY-80
装量标准The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封膜率Hot sealing intensity	》99%
装量测量误差The load error	《1.5%
耐磨损率damage rate	《1.0%
输出power	2KW	3KW
开关电源Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
称重 Weight	700Kg	800Kg
