作用与间介/ Brief Introduction：

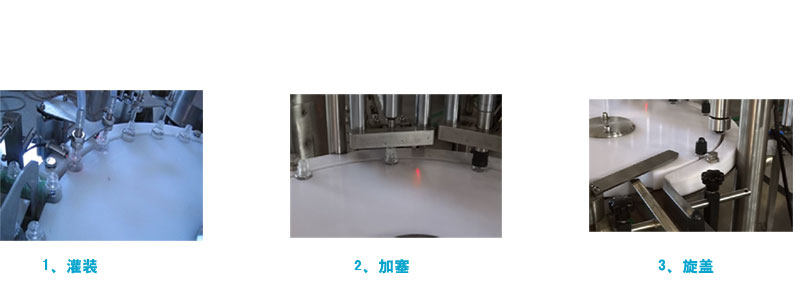

本生產线由全自动化操作式理瓶机、滚桶式洗瓶机、高压蒸汽灭菌干躁机、眼灵药罐装旋盖机、立试标贴汽轮发电机组成，可顺利完成理瓶、水、气的洁净、烘干箱及臭氧老化清洗、罐装、加塞、旋盖、标贴等工艺流程，最主要于眼灵药十分他小用量氢氧化钠溶液的联线生產，也可单机联机独立空间应用。齐全非常符合GMP标准。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

作用/Characteristic：

机器组方案结构的科学合理，工作稳定的、灌装线误差高，具国外本业内领先总体水平。是完全具有GMP标淮。     眼药粉灌装生产线线线旋盖机已至我集团公司的第3代类产品，人与机器网页抑制，儒动泵灌装生产线线线，由真空度吸自动的化设备手取代液压泵更优质的打塞，保持了平衡性和达标率率。进行恒转矩旋盖，包括无瓶不灌装生产线线线、无塞不上盖，无瓶无塞可自动的停电的能力。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技術技术要求/technical parameters：

适用于样式/Bottle size	10-20ml
生产制造专业能力/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
用水量压差/ Hydraulic Pressure Mpa	0.3Mpa
排水量 /water consumption	0.5 m3/h
洁净车间压缩成氧气压 /Clean compressed air pressure	0.6-0.8Mpa
洁净度降低空气的运用量/Clean compressed air consumption	300 L/min
电原/Voltage	380V/50Hz
电机功率/Power	5.5 kw
加工线总长/Dimension	11000*1500*1900mm
