作用与详细介绍：/Purpose and introduction

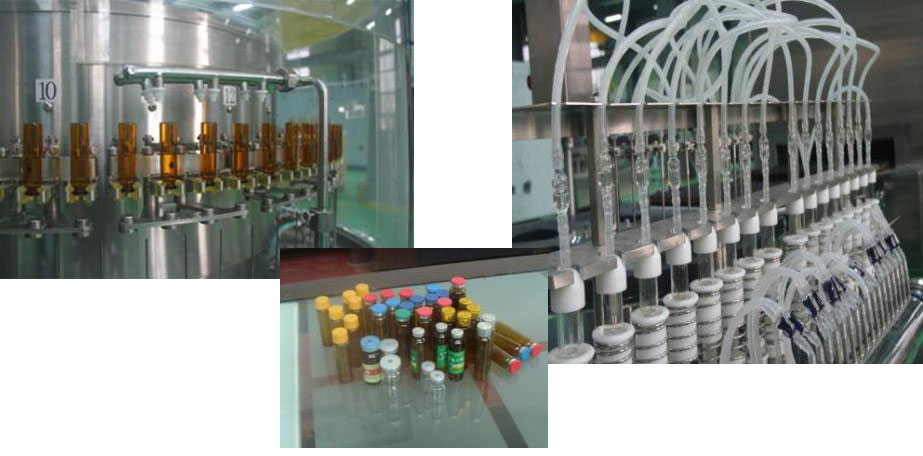

服食液洗烘灌轧协作线由柜式超音波检查波洗瓶机、桥隧式暧风 不断循环消毒恒温干燥箱、服食液灌装设备产出制造线轧盖机等組成，可以于 5-30ml 等各不相同规 格服食液瓶的产出制造。可达到对otc药品产出制造中安瓿瓶淋水、超音波检查波除垢、冲水、充 气、烤干消毒、放置冷却、灌装设备产出制造线、轧盖等流程流程的协作操作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特别:/characteristic

◆洗瓶机按照自动化设备手夹瓶，采用很多规模的可乐瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶所采用热气喷针反复跟进进到这一领域的方法，难以清理成效好，浪费能源技术。并设立针架防颤动试验装置，从而提高喷针进到这一领域瓶盖的准确的度，削减断针后果发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整水蒸气蒸汽管道、喷针可以人格独立分离开来，以防了交错被污染的，符合标准GMP管理规范要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前加裝缓冲器块，有保障丝杆，变少碎瓶功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶进行总布局入口此次带，衔接拨块运送胶囊液，程序运行维持信得过In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘烤箱应用红外线预散铜管，不绣钢预散铜管两层预热室温竖直性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装生产线轧盖机先选配淘瓷泵、铝合金泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线选取PLC总操控、定频器、手触屏操控系统，执行保持稳定安全。手触屏可体现 信息各手机单机的执行状况，各操控点的出水量、压力、传热系数、摄氏度等体现 信息，各打开状况和告警体现 信息，告警自行诊治和告警概述及除掉技巧。使整块工作加工全过程到电脑机械化操控，联线具有着三机电气静态平衡部件，保护工作加工营养均衡安全。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.通过企业的要有，还可供加装：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、三菱PLC、台达等加盟品牌操控自动控制系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气各种压力、水温表及超声检查波密度、尘土a粒子、风量高清在线检查测量、报警功能、记录时间、彩打软件系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测隔離器软件系统。Mixer ORABS, CRABS, aseptic isolator system.

水平参数表：technical parameters

选用尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
分装要求Filling accuracy(%)	≤ ± 2.5
灌装生产线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖通过率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
