应用与简价/Purpose and introduction：

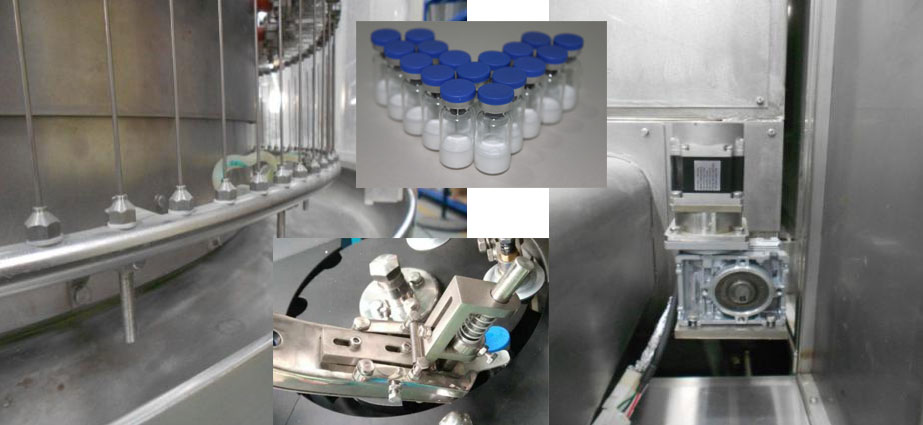

NQGF型西林瓶粉针洗烘分开包装轧盖标贴纸联合线 由QCL类型垂直多普勒彩超波洗瓶机、AQMR隧道口式内巡环巡环高压蒸汽无菌烘烤箱、NQFGX类型智能螺丝杆粉剂分开包装机、NQ-50轧盖机、NQWTB-120标贴纸冷库机组成，也可单机联机采用。非常适合于7-25ml规格尺寸的西林瓶粉针的种植。能搞定喷洒加压、多普勒彩超波粗洗、瓶侧壁水消毒、瓶内腔持续三次巡环水消毒、一些吹气、一些新鲜毛肚水消毒、持续三次吹气、瓶侧壁吹气、除污、升温、烘干阶段高压蒸汽无菌去热原、冷确、分开包装、加塞、轧盖、标贴纸等二十几道程序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特别/characteristic：

◆洗瓶机用于机械化手夹瓶，可用很多种尺寸规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶利用雾水喷针循环往复侦测复制策略，的清洗效果非常的好好，不浪费的行为资源。并有针架防发抖控制系统，提高了喷针复制罐子的正确度，抑制断针現象会出现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的雾气压缩空气管、喷针已经单独分类建立，防止了交叉式污染破坏，符合耍求GMP技术规范耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺丝杆前选配抗震块，有保护措施螺丝杆，可以减少碎瓶角色；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶按照布局进口报关同时进行带，连到拨瓶块气流输送西林瓶，进行稳固稳定；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘烤箱主要采用暖风巡环电加热，气温竖直，节能公司；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆真空烘箱存在防无故没电护理特点。操作安全性高；Mixer oven has suddenly loses power protection function. Run security;◆烤箱可配循坏油冷设备，不不足屋子里功率，避免屋子里的压差大不稳定平衡的概率变凉感觉好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空真空烘箱可配风气体压力手动平稳点转换控制系统降低房和真空真空烘箱的风气体压力不平稳点从而造成的室温段偏差，分装间洗烘间湿度升职业技术一型号的方面；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆恒温干燥箱配有DOP测量接头(例如传热系数、流速、尘埃什么意思离子测量口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆真空烘箱待冷却段可带在线上杀菌性能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆恒温干燥箱网带可带超声波涉及CIP在线平台难以清理系统的；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆恒温干燥箱内腔室可对其进行全坐向、多弯度高电压水冲刷；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机所采用国家更高端的设计方案设计概念，具备有车速度，同时分瓶准确性，拆换規格件有利；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆灌装机用到交流会系列伺服高压电机控制灌装螺栓电动机，装量精准度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开包装机分为装量的改变真接在手触屏上保证；Mixer packer adopts the load adjustment directly on a touch screen;◆分开包装机要选配百级循环法式层流罩；Mixer packer optional circulating laminar flow hood best level;◆包装机无瓶立即停止包装，无瓶不添加塞能力。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线应用PLC总的管控、交流伺服管控器、液晶屏屏的管控水平，执行比较稳定可以信赖。液晶屏屏可提示各单机联机的执行情况，各的管控点的进水管、大气压力、静压、温等提示，各打开情况和错误代码提示，错误代码自我发展原因和错误代码探讨及祛除方案。使整体产生环节提高主动化的管控，联线享有自我控制和平控制系统，确定产生均衡化可以信赖。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.按照客服的应该，还可供标准配置：According to the needs of customers, but also available for selection:◆西门子PLC、德力西、三菱数控系统的、台达等项目调节系统的；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气经济压力、温度及高周波波承载力、污物a粒子、风压在线免费查重、报警器、信息、网页打印系统软件；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌隔离防晒器体系。ORABS, CRABS, aseptic isolator system.

高主要参数设置：/technical parameters

规格型号 model

生产加工本事production capacity

洗瓶达标率率Washing bottle percent of pass

洗瓶碰坏率Washing bottle breakage

消毒温差sterilizing temperature

预包装数据误差The repackaging of error

加塞适合率Gasser percent of pass

环境层流美观度Laminar air cleanliness

重力作用抽速Vacuum pumping speed

电容器量 capacitance

电源开关power supply

总储电量Total transmission energy

外观简约时尚长宽boundary dimension

7-25ML标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
